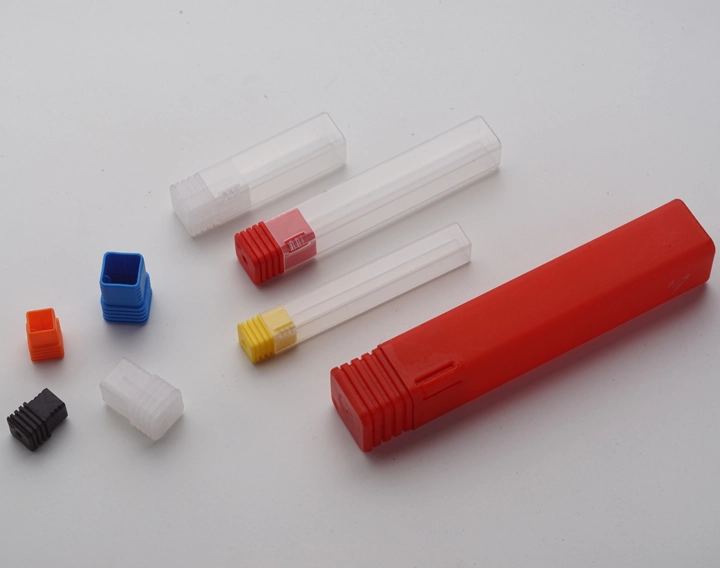

Shank Holding Pack

Quality single packaging,with short shank holding base-plug groove in bottom part makes opening easy center adapter to support and secure tool

  • Product Features

    Attractive design durable and re-usable high Protection for tools cutting edges,sturdy oil and moisture resistant

  • Application

    Ideal for Solid Carbide, Milling Cutters, Shank Tools, Drills & Micro Drills

  • Want to know more about the product before sample request - Click Here

Download PDF
Sample Request
Pattern Objects

Available Sizes for Shank Holding Pack

Shank Holding Pack (SHP-08) - Cap

Item Code (Ø) Shank Holding Box Qty Available Color
(mm) (inch)
SHP08-CAP2.35 2.35 0.093 2000
SHP08-CAP03 3 0.118 2000
SHP08-CAP3.175 3.175 0.125 1/8″ 2000
SHP08-CAP04 4 0.157 2000
SHP08-CAP4.762 4.762 0.187 3/16″ 2000
SHP08-CAP05 5 0.197 2000
SHP08-CAP06 6 0.236 2000
SHP08-CAP6.35 6.35 0.250 1/4″ 2000
SHP08-CAP08 8 0.315 2000

Shank Holding Pack (SHP-08) - Tube

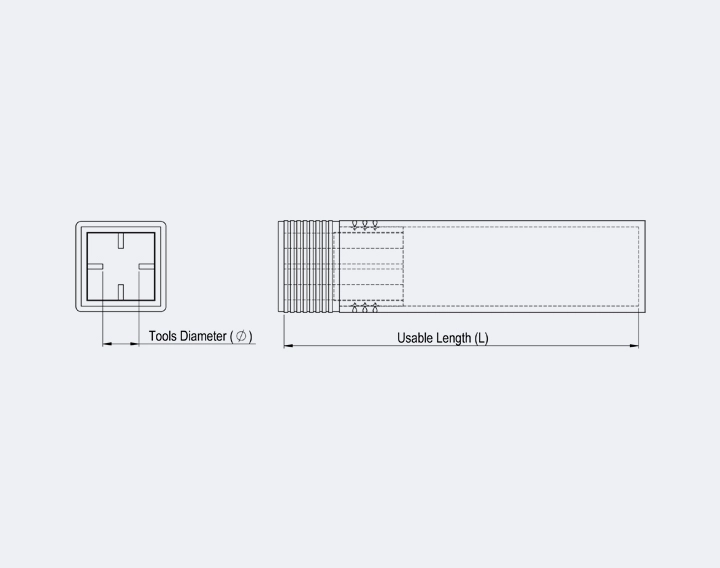

Item Code Inside Width Usable Length (L) Box Qty Available Color
(mm) (mm) (inch)
SHP08-TUBE42 10 50 1.969 2000
SHP08-TUBE52 10 60 2.362 2000
SHP08-TUBE70 10 78 3.071 2000
SHP08-TUBE85 10 93 3.661 2000
SHP08-TUBE97 10 105 4.134 2000

Shank Holding Pack (SHP-13) - Cap

Item Code (Ø) Shank Holding Box Qty Available Color
(mm) (inch)
SHP13-CAP03 3 0.118 1000
SHP13-CAP04 4 0.157 1000
SHP13-CAP05 5 0.197 1000
SHP13-CAP06 6 0.236 1000
SHP13-CAP6.35 6.35 0.250 1/4″ 1000
SHP13-CAP07 7 0.276 1000
SHP13-CAP08 8 0.315 1000
SHP13-CAP09 9 0.354 1000
SHP13-CAP9.525 9.525 0.375 3/8″ 1000
SHP13-CAP10 10 0.394 1000
SHP13-CAP11 11 0.433 1000
SHP13-CAP11.11 11.11 0.437 7/16″ 1000
SHP13-CAP12 12 0.472 1000
SHP13-CAP12.7 12.7 0.500 1/2″ 1000
SHP13-CAP13 13 0.512 1000

Shank Holding Pack (SHP-13) - Tube

Item Code Inside Width Usable Length (L) Box Qty Available Color
(mm) (mm) (inch)
SHP13-TUBE56 15 66 2.598 1000
SHP13-TUBE74 15 84 3.307 1000
SHP13-TUBE97 15 108 4.252 1000
SHP13-TUBE110 15 120 4.724 1000

Shank Holding Pack (SHP-18) - Cap

Item Code (Ø) Shank Holding Box Qty Available Color
(mm) (inch)
SHP18-CAP14 14 0.551 400
SHP18-CAP14.287 14.287 0.562 9/16″ 400
SHP18-CAP15.875 15.875 0.625 5/8″ 400
SHP18-CAP16 16 0.630 400

Shank Holding Pack (SHP-18) - Tube

Item Code Inside Width Usable Length (L) Box Qty Available Color
(mm) (mm) (inch)
SHP18-TUBE83 21 98 3.858 400
SHP18-TUBE130 21 144 5.670 400
SHP18-TUBE145 21 158 6.220 400

Shank Holding Pack (SHP-20) - Cap

Item Code (Ø) Shank Holding Box Qty Available Color
(mm) (inch)
SHP20-CAP18 18 0.709 300
SHP20-CAP19.05 19.05 0.750 3/4″ 300
SHP20-CAP20 20 0.787 300

Shank Holding Pack (SHP-20) - Tube

Item Code Inside Width Usable Length (L) Box Qty Available Color
(mm) (mm) (inch)
SHP20-TUBE62 24 80 3.150 300
SHP20-TUBE89 24 107 4.213 300
SHP20-TUBE130 24 148 5.827 300
